- Latis Zig Zag
- Pendants
50 Greene StNew York NY 10013T +1 212 388 1621sales@rbw.com
For 2D & 3D drawings of all products, including CAD, Revit and IES files, please visit rbw.com
Specification Logic
Size
Primary Finish
Direct Light
Indirect Light
Color Temperature
Dimming / Control / Input
Quantity
Ships between Jan 1 - Jan 1
Unit List Price
$6,002.70
LS3-888 Latis Zig Zag 8-8-8 (Style 50) Dimension
LS3-848 Latis Zig Zag 8-4-8 (Style 50) Dimension
LS3-484 Latis Zig Zag 4-8-4 (Style 50) Dimension
- Latis Zig Zag
- Pendants
Overview
Description

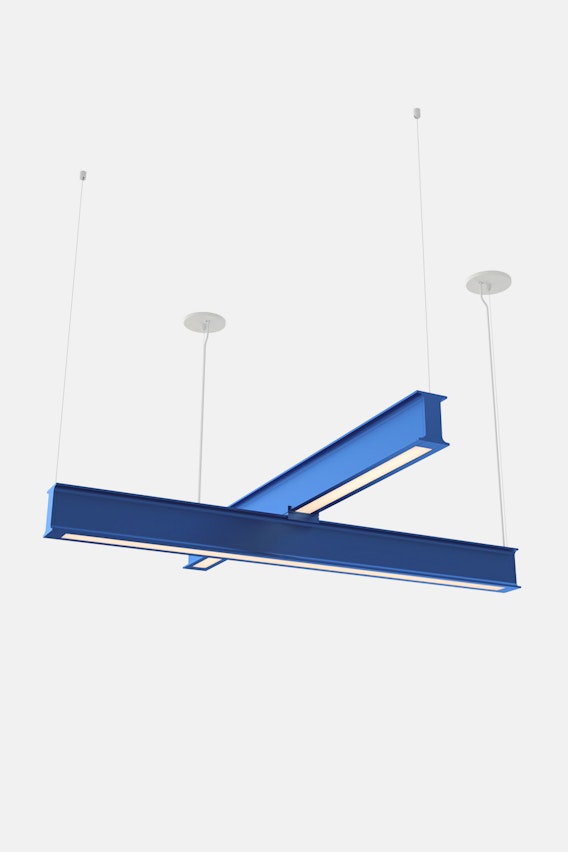

Engineered with versatility in mind, Latis’s intelligent, fail-safe design easily adapts to a wide range of spaces, looks, and architectural conditions. Evocative of a structural I-beam, its deceptively minimalist profile packs robust performance capabilities into RBW’s new optic platform.
Materials
Extruded aluminum, extruded acrylic lensCollection Notes
In addition to the (2) fixed hang points, each linear run comes with (1) flexible, sliding hang point. Please let your sales rep know if your project requires additional sliding hang points. Looking for higher lumen output? We are happy to discuss how we can meet your project needs. For pricing on large quantity orders, please contact sales@rbw.com.Performance
- 4'-8'-4': 11,300 lm | 8'-4'-8': 14,200 lm | 8'-8'-8': 17,000 lm
- Power Consumption 4'-8'-4': 144W | 8'-4'-8': 180W | 8'-8'-8': 216W
- Luminaire Watts 4'-8'-4': 144W | 8'-4'-8': 180W | 8'-8'-8': 216W
- 78.7 lm/W
- 90 CRI
Led Lifespan
- 50k hours
Patent File Number
Patent Number 202015830, 008211791-0001, GB90082117910001Certification
- UL Listed
Note on Imagery
All product photos are made using the correlated color temperature (CCT) of 2700k. The actual color temperature experienced within your environment may vary based on other light sources and materials present.
Suspension
- White 5" round flat canopy per linear unit
- Standard 72" cable
- Standard Hang Height 66"
- Minimum Hang Height 6"
- Cable extension available (up to 150")
- Field trimmable
Product Dimensions
Dimensions vary for this Product. Please refer to tear sheet dimension drawing.Product Weight
30 lbs / 13.6 kgDimensional Weight
- Dimensional weight pending
Technical Drawings
Scroll to view more technical drawings of this product, tap the center of image to zoom.
Polar Plots
Latis Diffuse Lens
Latis Narrow Beam
Latis Asymmetric
Latis Batwing Optic IES
Photometry Render
Beam Angle
Latis Indirect Asymmetric
Latis Indirect Batwing
Latis Indirect Diffuse
Latis Indirect Narrow
Latis Indirect None
Latis Direct None
Latis Direct Asymmetric
Latis Direct Diffuse
Latis Direct Narrow
